Casa /Prodotti/Cuscinetto a sfera angolare del contatto/7012AC P4 Angular Contact Ball Bearing 60x95x18mm Sealed

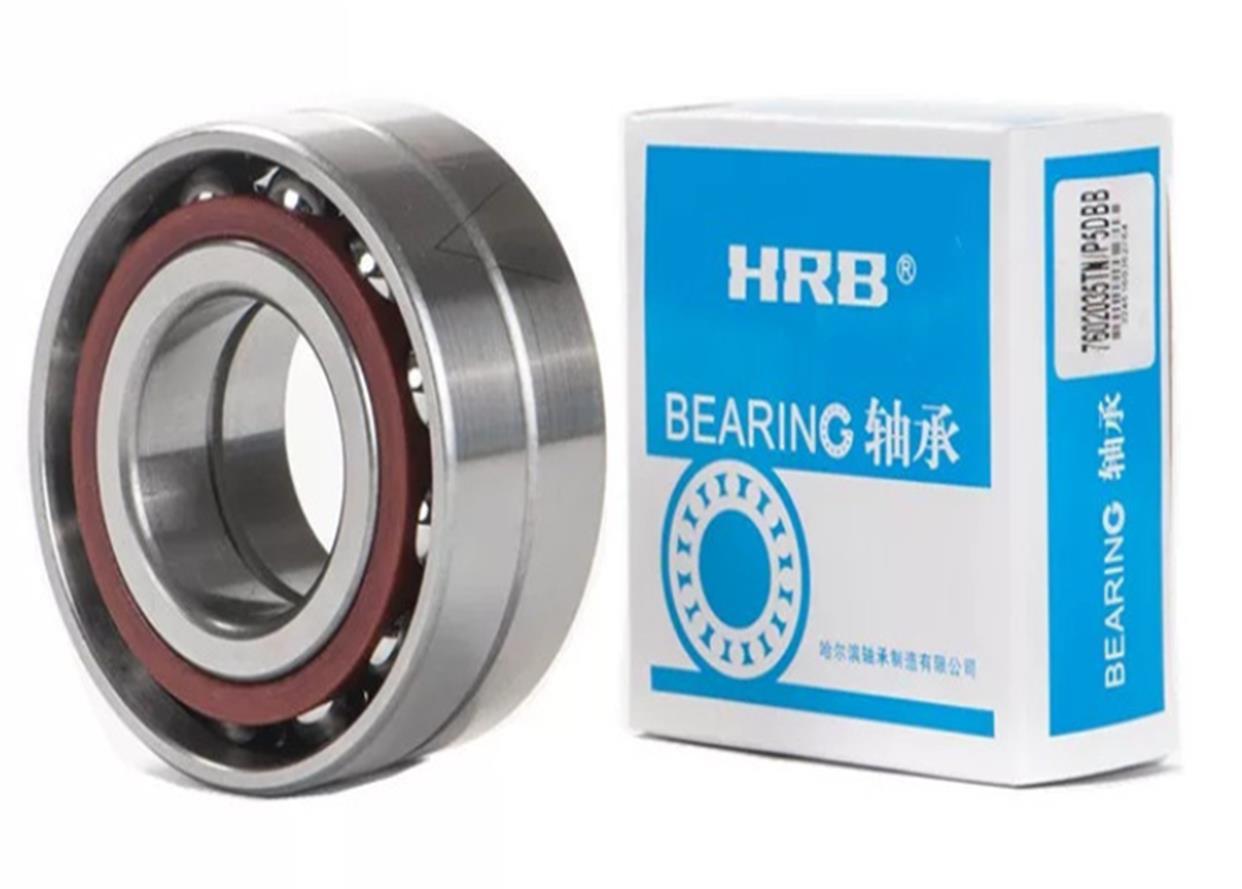

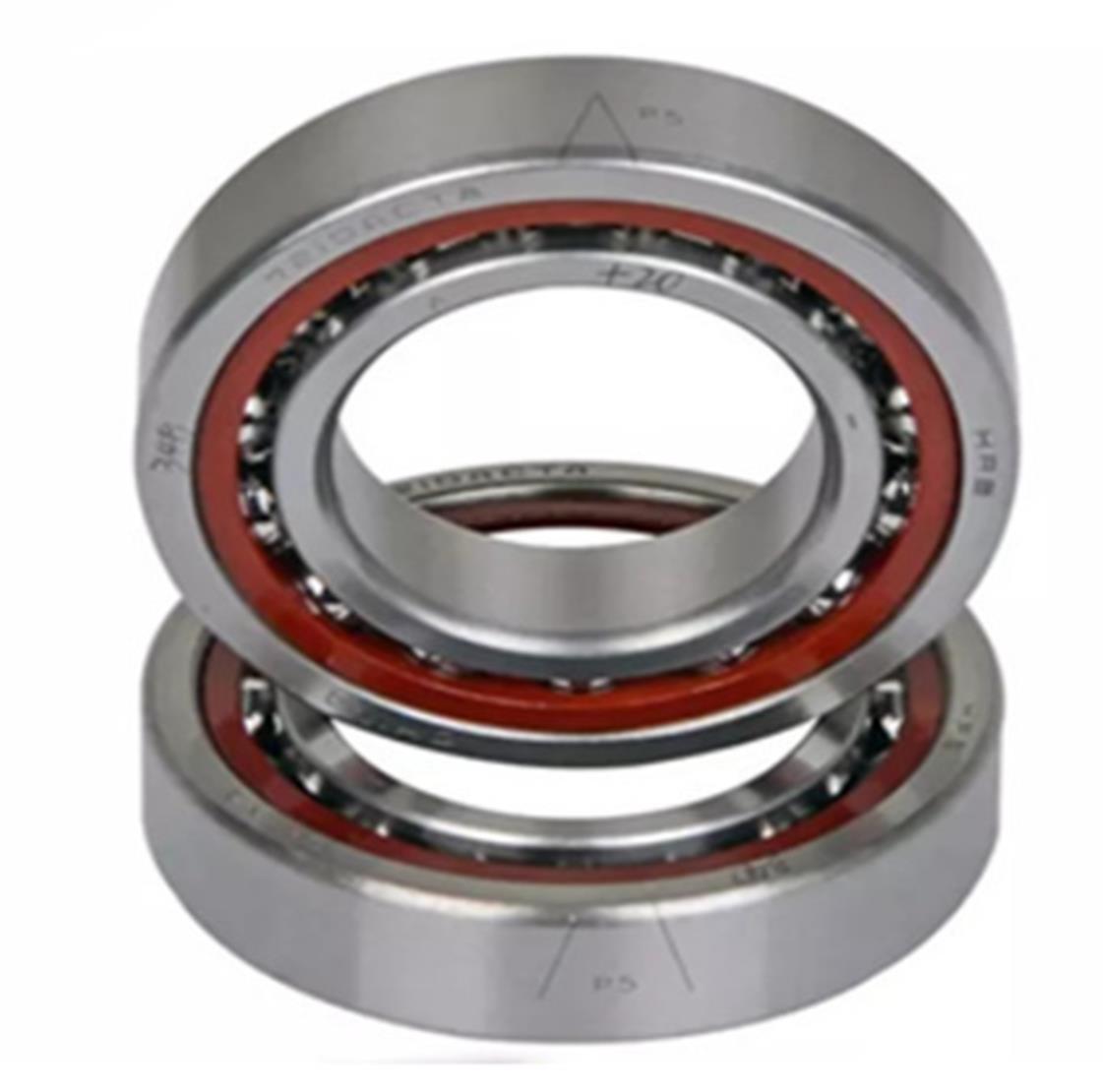

7012AC P4 Angular Contact Ball Bearing 60x95x18mm Sealed

10
MOQ
$15.06
prezzo
7012AC P4 Angular Contact Ball Bearing 60x95x18mm Sealed
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Width: 18 Mm
Lubrication: Grease , Oil
Rated static load (Cor): 28.1 KN
Precision grade: P0、P6、P5、P4、P2
Max. limited speed for oil lubrication: 9700 R/min
Clearance: C5,C4,C3,C0 ,C2
Max.limited speed for Grease lubrication: 7700 R/min
Seals: Sealed
Evidenziare:

7012AC P4 sealed ball bearing

,

60x95x18mm angular contact bearing

,

sealed angular contact ball bearing
Informazioni di base
Place of Origin: China, Germany, Sweden
Marca: SKF, FAG , INA, LYC, HRB
Certificazione: ISO9001-2015/SGS
Model Number: 7012AC
Termini di pagamento e spedizione
Packaging Details: Standard packing
Delivery Time: based on quantity
Payment Terms: T/T in advance
Supply Ability: 7.5KKPCS/Month
Descrizione di prodotto
7012AC P4 Angular Contact Ball Bearing
Precision Grade P4 with Rated Dynamic Load of 31.9KN
Product Specifications
Attribute Value
Width 18 mm
Lubrication Grease, Oil
Rated static load (Cor) 28.1 KN
Precision grade P0, P6, P5, P4, P2
Max. speed (oil) 9700 R/min
Clearance C5, C4, C3, C0, C2
Max. speed (grease) 7700 R/min
Seals Sealed
Product Description
The 7012AC Angular Contact Ball Bearing is a precision-engineered component designed for high-speed and high-precision applications. With an outer diameter of 95 mm and width of 18 mm, this bearing is ideal for industrial and mechanical setups where space efficiency is critical.
Key Features
  • Outer Diameter: 95 mm
  • Width: 18 mm
  • Separable/Inseparable options
  • Net Weight: 0.45 kg
  • Cage Material: Steel or Brass
  • Multiple clearance options (C5, C4, C3, C0, C2)
  • Compatible with grease or oil lubrication
Technical Parameters
Rated dynamic load (Cr): 31.9 KN
Inner Diameter: 60 mm
Material: Steel
Precision Grades Available: P0, P6, P5, P4, P2
Applications
The 7012AC bearing is designed to handle combined radial and axial loads, making it suitable for:
  • Machine tools
  • Agricultural machinery
  • Construction equipment
  • Automotive applications
  • Industrial gearboxes
Customization Options
Available brands: SKF, FAG, INA, LYC, HRB
Minimum Order Quantity: 10 units
Certification: ISO9001-2015/SGS
Supply Capacity: 7.5KKPCS/Month
Frequently Asked Questions
What brands are available for this bearing?
Available brands include SKF, FAG, INA, LYC, and HRB.
Where is this bearing manufactured?
Manufactured in China, Sweden, and Germany.
What is the minimum order quantity?
Minimum order quantity is 10 units.
